Modular

For skid mounted systems of any size, we offer a modular configuration. We can expand up to an Quadruplex 25HP on multiple skids. A separate skid with the receiver and control panel make it a complete NFPA 99 medical vacuum package with System Health. The system will be shipped in modules to allow for ease of placement in the facility when trying to retrofit. This allows flexibility for an extremely easy installation and start-up in tight spaces. A Purge valve is included that is required for laboratory applications to ensure no harmful gas is built up in the system.

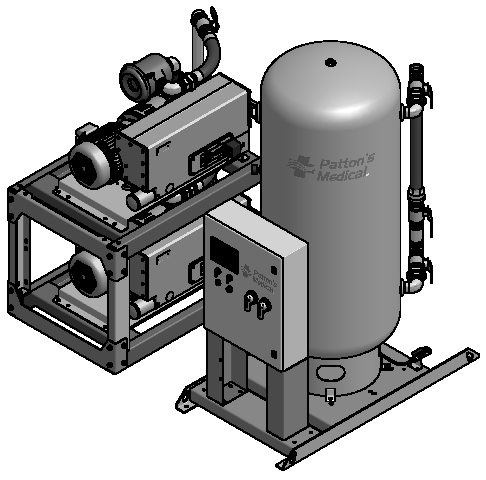

Duplex

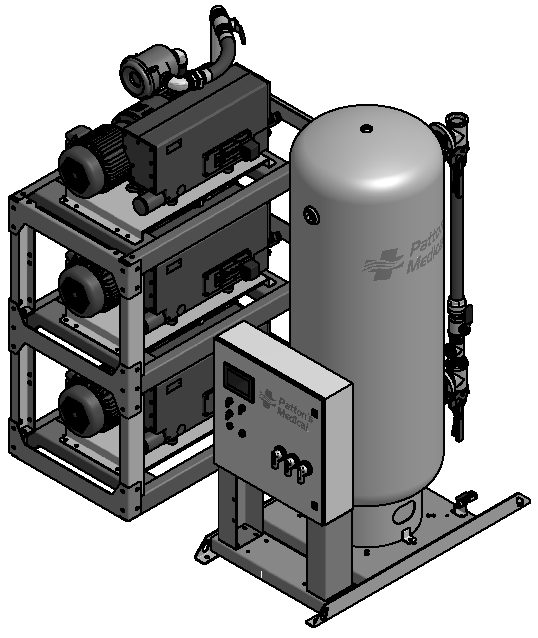

Triplex

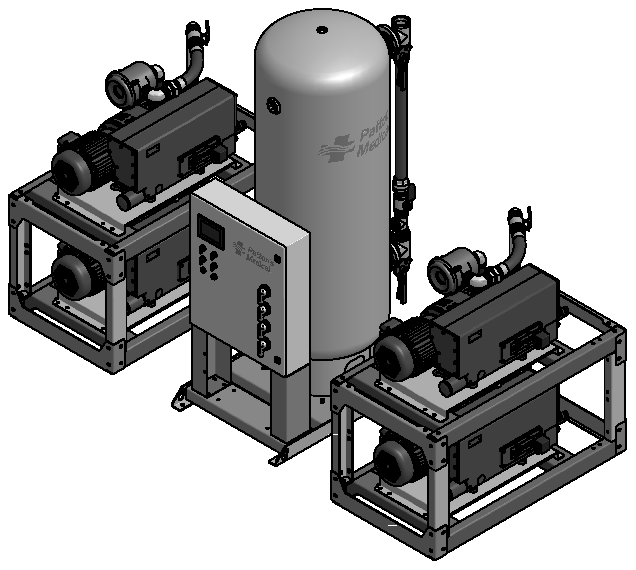

Quad
